CSC5120TQZDP4 Model technical parameters | |||
Name: | CSC5120TQZDP4 | Exterior size(mm): | 9130,9430×2420×2920 |
Chassis: | DFL1120B13 | Container size(mm): | ×× |
Total weight :(kg) | 12495 | Approach angle/ Departure angle(° ) | 20/13 |
Payload:(kg) | Front suspension/rear suspension(mm): | 1430/3000 | |
Kerb Mass:(kg) | 7340,7800(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | DFL1120B13 | Axle weight: | 4400/8095 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 4700,5000 | Fronttread(mm): | 1880,1924 |
Max people in cab: | 3 | Rear tread(mm): | 1800,1820 |
Number of tires: | 6 | Number of spring axle: | 7/9+6,8/10+8 |
Tire Type: | 9.00-20,9.00R20,255/70R22.5 | ||
introduction: | 托举质量:4960kg;选装摆臂平板装置时整备质量为7800kg、托举质量为4500kg;轴距4700mm对应整车长9130mm;轴距5000mm对应整车长9430mm;侧防护Q235B采用螺栓连接;后防护由专用装置替代,Q235B焊接。ABS厂家及型号:东科克诺尔商用车制动系统(十堰)有限公司/3631010-C2000。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
ISDe180 40 ISDe160 40 ISDe185 40 EQH160-40 EQH180-40 ISB180 40 |
东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风商用车有限公司 东风商用车有限公司 东风康明斯发动机有限公司 |
4500 4500 6700 4752 4752 5900 |
132 118 136 118 132 132 |
other parameters |
Introduction: |

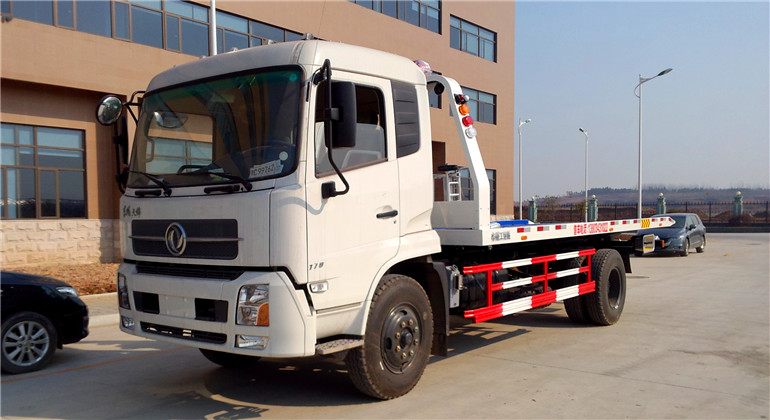

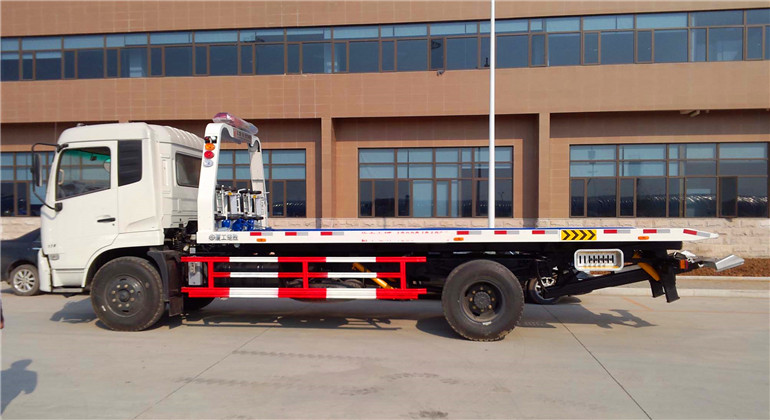

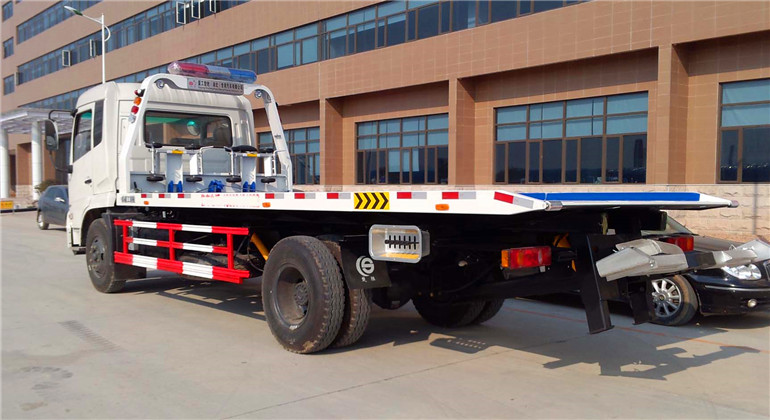

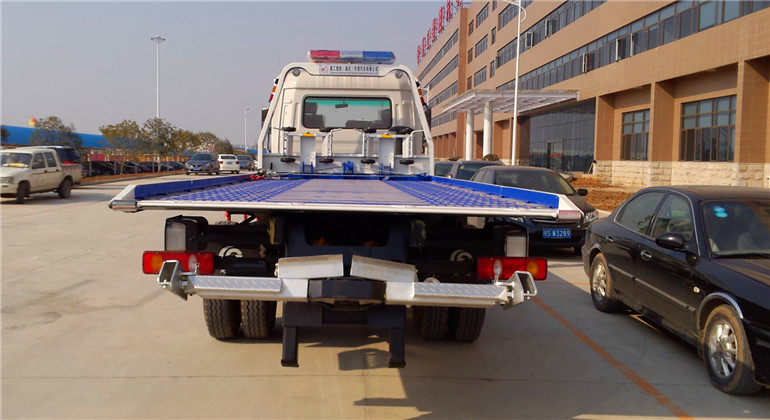

more Picture: |
